401 Kingsway Mixed-Use

Vancouver, BC

Rezoning Whole-Building LCA CD-1 Item 4.1
LCA intensity (A-C)
0 kg CO2e/m²
Height
0 m
Structure
Concrete

Project Overview

Twelve-storey mixed-use (strata) concrete tower with three underground parking levels. The rezoning submission provides a whole-building LCA under the Green and Resilient Building Measures Package — CD-1 Item 4.1 (Rezoning Policy last amended Nov 27, 2024).

The model (Athena IE 5.5) uses architectural take-offs, 60-year life, and required scope (substructure and shell). Compliance values exclude biogenic carbon per CoV. Results: intensity ≈ 356 kg CO2e/m² and total GWP (A-C, excl. biogenic) ≈ 4,192,065 kg. The project meets the current absolute pathway (400 kg) and the anticipated future 10% reduction target (360 kg) for permits submitted after mid-2025.

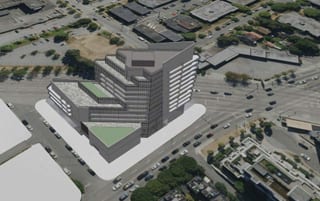

401 Kingsway rendering

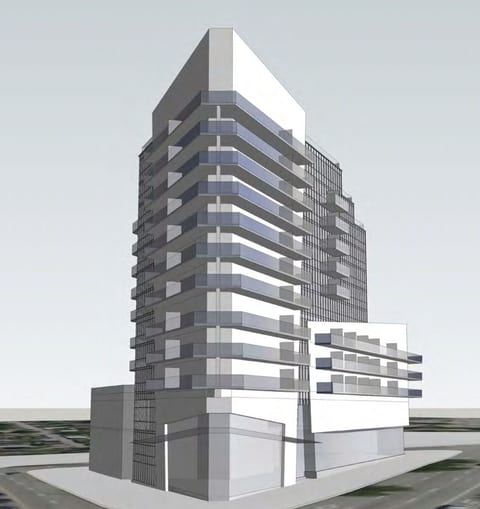

Concrete structure

Project Data

LocationKingsway, Vancouver, BC
Building TypeMixed-Use (Part 3)
StageCD-1 Rezoning (Item 4.1)
Height / Storeys43 m / 12 storeys
GFA considered11,766 m² (per CoV guideline)
StructureConcrete tower; podium, Steel stud walls and 3-level parkade
LCA scopeA1-A5, B1-B5, C1-C4; 60-year life; Module D excluded
ToolAthena Impact Estimator 5.5
ComplianceAbsolute pathway (400 kg); Future target 360 kg (F=0.9) — met

Our Contribution

  • Material take-offs and LCA modeling Quantified concrete, reinforcement, and envelope from drawings; built Athena IE 5.5 model.
  • Whole-building LCA and stage reporting Reported A1-A3, A4-A5, B1-B5, and C1-C4 per CoV compliance (biogenic excluded).
  • Rezoning documentation (ECDR) Prepared condensed/detailed tables, totals and intensity, and bill-of-materials for submission.
  • Compliance review and narrative Verified against 400 kg benchmark and future 360 kg target with CD-1 Item 4.1 narrative.

Key Results

Total GWP (A-C, excl. biogenic)4,192,065 kg CO2eIntensity: 356 kg CO2e/m²
A1-A3 (Product)≈ 3,240,000 kgMaterials and manufacturing
A4-A5 (Construction)≈ 404,000 kgTransport and installation
B2/B4/B6 (Use)≈ 235,000 kgMaintenance and replacements
C1-C4 (End of life)≈ 309,000 kgDeconstruction and disposal
