421 Kingsway Mixed-Use

Vancouver, BC

Rezoning Whole-Building LCA Broadway Plan
LCA intensity (A–C)
0 kg CO2e/m²
Height
0 m
Structure
Twenty-five-storey Concrete tower

Project Overview

Twenty-five-storey mixed-use tower with three underground parking levels, advanced under Vancouver's Broadway Plan. The rezoning submission is under the Green and Resilient Building Measures Package (CD-1 Item 4.1) and aligns with the CoV Green Buildings Policy for Rezoning (last amended Nov 27, 2024).

The model (Athena IE 5.5) uses architectural take-offs, a 60-year life, and required scope (substructure and shell). Compliance values exclude biogenic carbon per CoV. Results: total GWP (A–C, excl. biogenic) ≈ 7,590,911 kg and intensity ≈ 340 kg CO2e/m². The design meets the current 400 kg benchmark and the anticipated 360 kg future target (F=0.9) for permits after mid-2025.

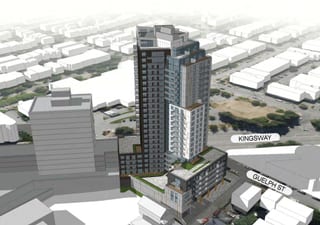

421 Kingsway rendering

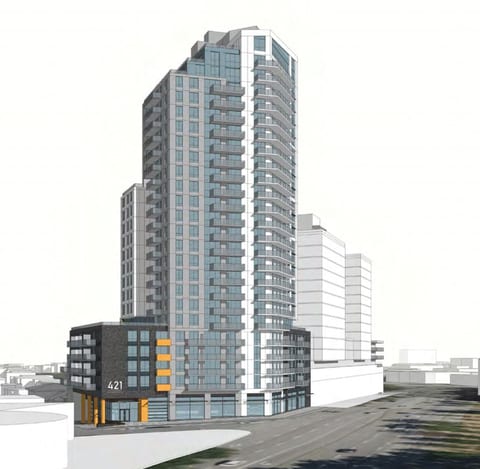

Concrete superstructure

Project Data

LocationKingsway, Vancouver, BC
Building TypeMixed-Use (Part 3)
StageCD-1 Rezoning (Item 4.1)
Height / Storeys75 m / 25 storeys
GFA considered22,357 m² (per CoV guideline)
Parkade3 levels (≈ 4,318 m²)
StructureConcrete; CIP slabs and shear walls; steel stud walls
LCA scopeA1–A5, B1–B5, C1–C4; 60-year life; Module D excluded
ToolAthena Impact Estimator 5.5
ComplianceAbsolute pathway (400 kg); future target 360 kg (F=0.9) — met

Our Contribution

  • Material take-offs and LCA modeling Quantified concrete and reinforcement from drawings; built Athena model to CoV scope.
  • Whole-building LCA and stage reporting Reported A1–A3, A4–A5, B2/B4/B6, C1–C4 in compliance format.
  • Rezoning documentation (ECDR) Prepared condensed/detailed tables, totals/intensity, and BoM for submission.
  • Compliance review and narrative Aligned with Broadway Plan rezoning and CoV embodied-carbon benchmarks.

Key Results

Total GWP (A–C, excl. biogenic)≈ 7,591,000 kg CO2eIntensity: ≈ 340 kg CO2e/m²
A1–A3 (Product)≈ 5,924,000 kgMaterials and manufacturing
A4–A5 (Construction)≈ 772,000 kgTransport and installation
B2/B4/B6 (Use)≈ 341,000 kgMaintenance and replacements
C1–C4 (End of life)≈ 553,000 kgDeconstruction and disposal
