433 Lakewood Mixed-Use

Vancouver, BC

VBBL ZEBP Low-Carbon Energy Systems Mixed-Use
TEUI (modeled)
0 kWh/m²/yr
TEDI (modeled)
0 kWh/m²/yr
GHGI (modeled)
0 kg CO2e/m²/yr

Project Overview

Four-storey mixed-use development in Vancouver designed to meet the Vancouver Building By-law Zero Emissions Building Plan (ZEBP). The energy strategy combines residential PTHPs, commercial VRF, corridor RTUs, and a hybrid DHW system within an optimized envelope to achieve low-carbon performance.

Modeled in IES-VE with Vancouver CWEC weather, the project achieves TEUI ≈ 71.96 kWh/m²/yr, TEDI ≈ 17.92 kWh/m²/yr, and GHGI ≈ 1.99 kg CO2e/m²/yr (LCES pathway). Total modeled area ≈ 9,283 m².

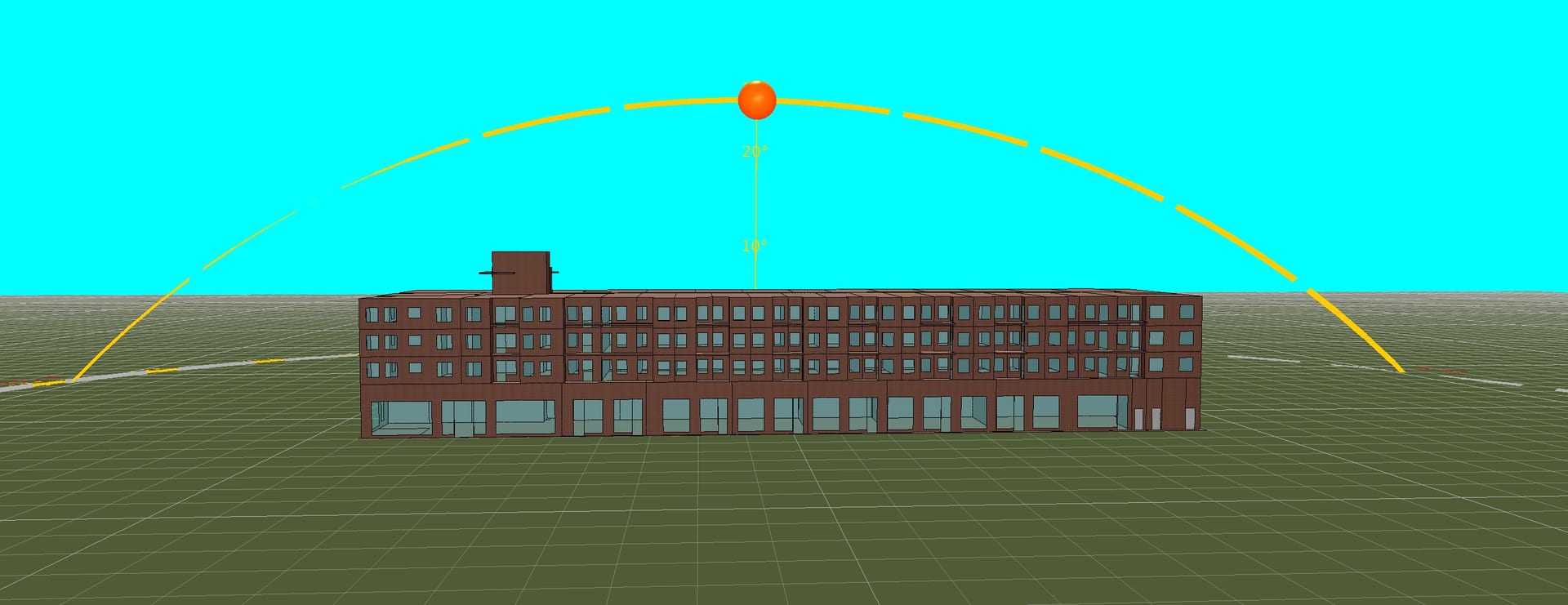

433 Lakewood exterior
Mixed-use massing

Project Data

LocationVancouver, BC
Building TypeMixed-Use (Residential + Commercial)
StageTender
Height / Storeys4 storeys
Modeled floor area≈ 9,283 m²
Energy pathwayVBBL ZEBP - LCES
MechanicalPTHPs (residential); VRF (commercial); corridor RTUs
DHWHeat pump + dual condensing boilers (res); electric (com)
Software / WeatherIES-VE / Vancouver BC CWEC

Our Contribution

  • VBBL ZEBP modeling LCES compliance with weighted targets.
  • Multi-system heat pump integration PTHPs, VRF, RTUs coordination.
  • Permit documentation Rental Incentive submission support.

Key Results

TEUI (modeled)71.96 kWh/m²/yrLCES pathway
TEDI (modeled)17.92 kWh/m²/yrLCES pathway
GHGI (modeled)1.99 kg CO2e/m²/yrLCES requirement
Total annual energy≈ 711,605 kWhResidential + Commercial
