Amber Residential Development

Maple Ridge, BC

Building Permit Part 3 Residential Step Code 2
TEUI (modeled)
0 kWh/m²/yr
TEDI (modeled)
0 kWh/m²/yr
Suites
0

Project Overview

Amber Residential Development is a six-storey Group C multi-unit residential building in Maple Ridge, BC. The design serves 115 suites and was modeled to Step Code 2 using a whole-building approach with suite-level high efficiency heat pump, ERVs and a code-compliant corridor pressurization strategy.

The modeled floor area is ≈ 9,105 m² with a balanced WWR ≈ 0.42. Results (corridor credit applied) achieve TEUI ≈ 124 kWh/m²/yr, TEDI ≈ 36 kWh/m²/yr, and GHGI ≈ 8.6 kg CO2e/m²/yr, confirming compliance with BCBC Part 10 Step Code 2 while maintaining envelope performance and ventilation effectiveness for a high-quality residential outcome.

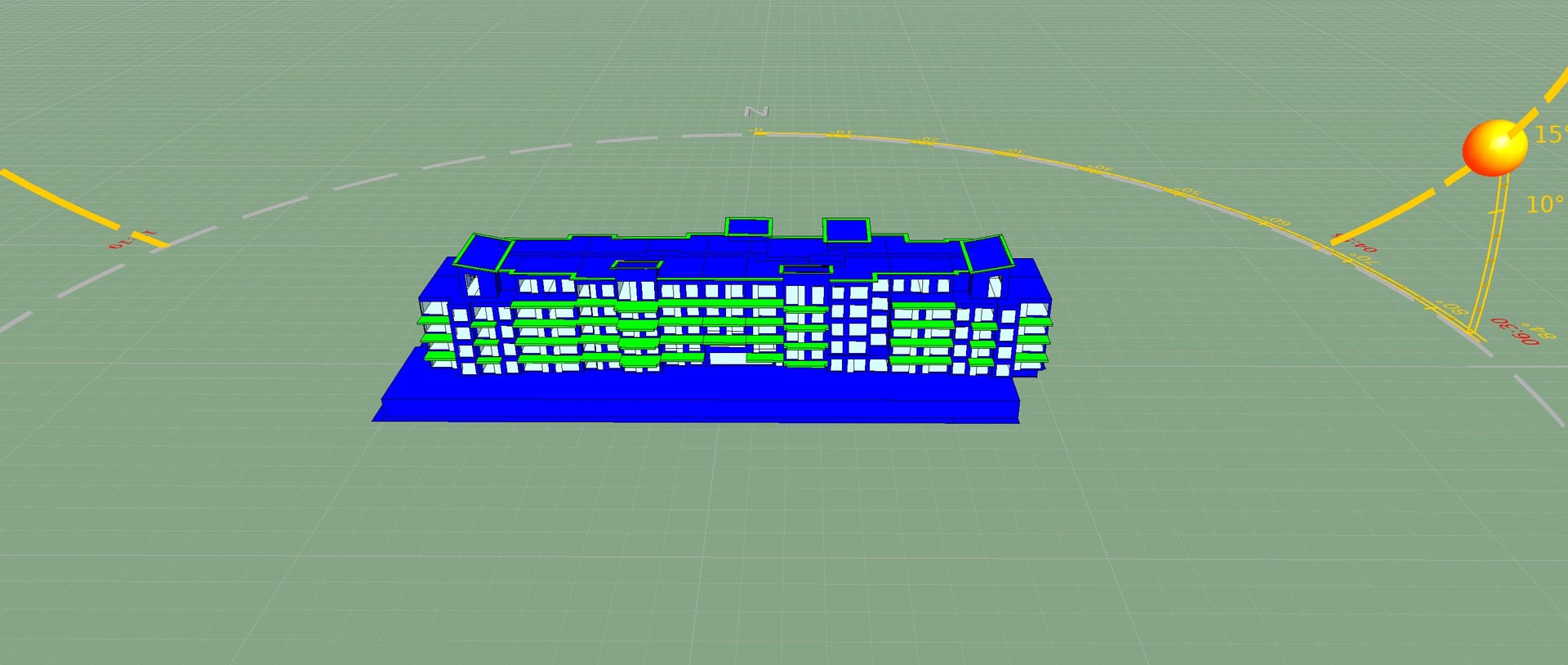

Amber Residential Development rendering

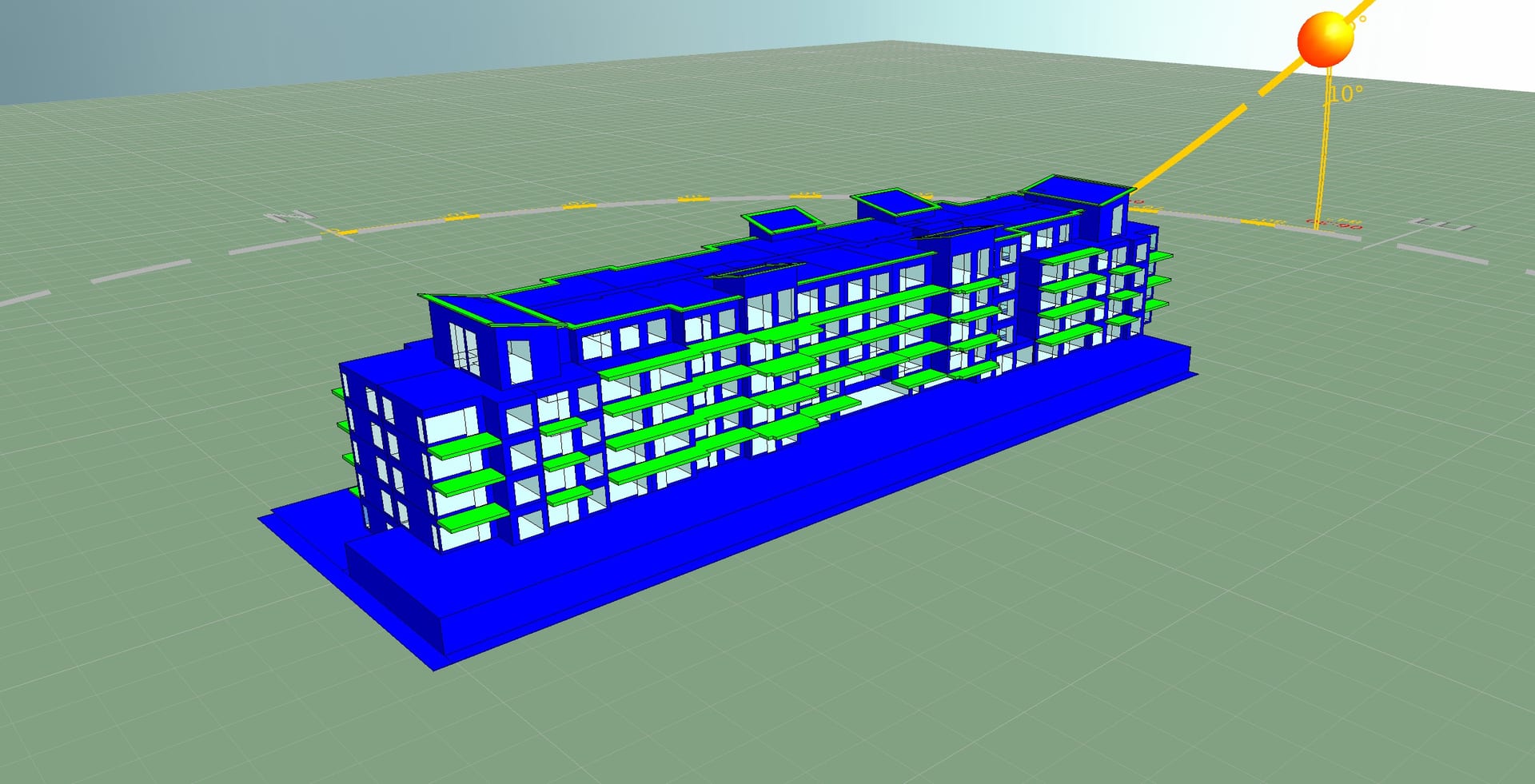

Facade and massing

Project Data

LocationMaple Ridge, BC
Building TypePart 3 Residential (Group C)
StageBuilding Permit
Height / Storeys6 storeys
Suites115
Modeled floor area9,105 m²
Envelope2x6 wood frame with R24 batt insulation; roof R35 polyiso; floor R20 fiber spray; WWR ≈ 0.42; windows U1.4 / SHGC 0.30
Mechanical SystemsWall-mounted split heat pumps; gas RTU for corridors; gas-fired water heaters; suite ERVs ≈ 80%
ComplianceBC Energy Step Code Level 2 (Group C)

Our Contribution

  • Whole-building energy modeling Group C MURB model; Step 2 targets for TEDI and TEUI.
  • Suite-level metering integration Space-heating metering across 115 suites for accountability.
  • Corridor pressurization analysis Airflow sizing (12.86 L/s/door) and integration in model.
  • Permit documentation Prepared Step Code compliance package for building permit.

Key Results

TEUI (modeled)124 kWh/m²/yrStep 2 (corridor credit applied)
TEDI (modeled)36 kWh/m²/yrStep 2 (corridor credit applied)
GHGI (modeled)8.6 kg CO2e/m²/yrCorridor credit applied
Annual Gas Consumption≈ 1,846 GJModel output
Annual Electrical Consumption≈ 681,233 kWhAll end-uses
