CELO Residential

North Vancouver, BC

Step Code 3 District Energy Energy Modeling
TEUI
0 kWh/m²
TEDI
0 kWh/m²
Compliance
Step Code 3

Project Overview

A 6-storey residential building over a concrete underground level. The design connects to a district energy system and uses hydronic fan coils with high-performance envelope assemblies to meet BC Energy Step Code 3.

Eleman delivered whole-building hourly energy modeling, envelope optimization, and compliance documentation, coordinating with mechanical and architectural teams to align loads, system selections, and enclosure performance. We performed preliminary energy modeling during Development Permit to inform early design decisions, followed by full detailed modeling for Building Permit.

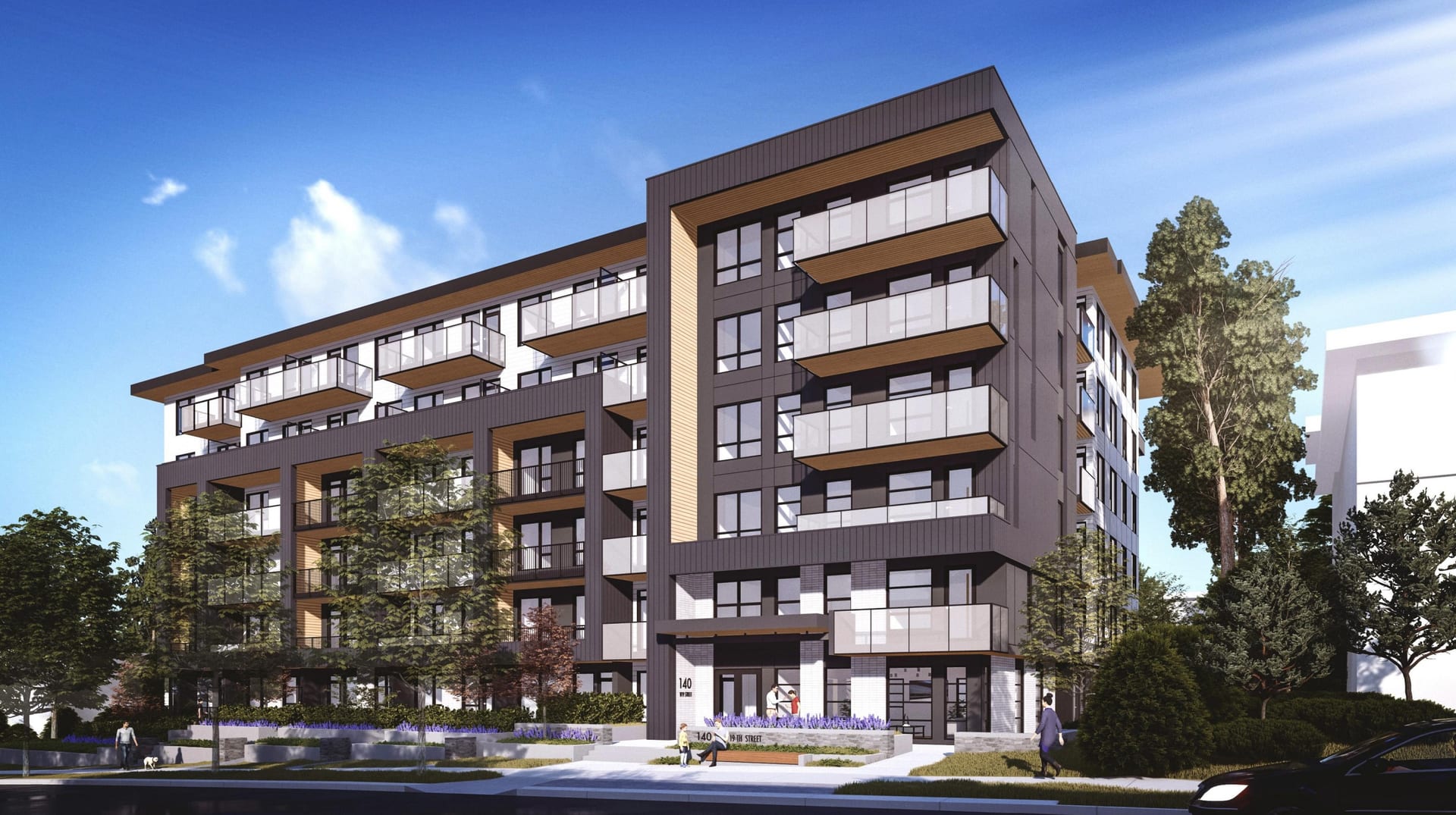

CELO exterior rendering

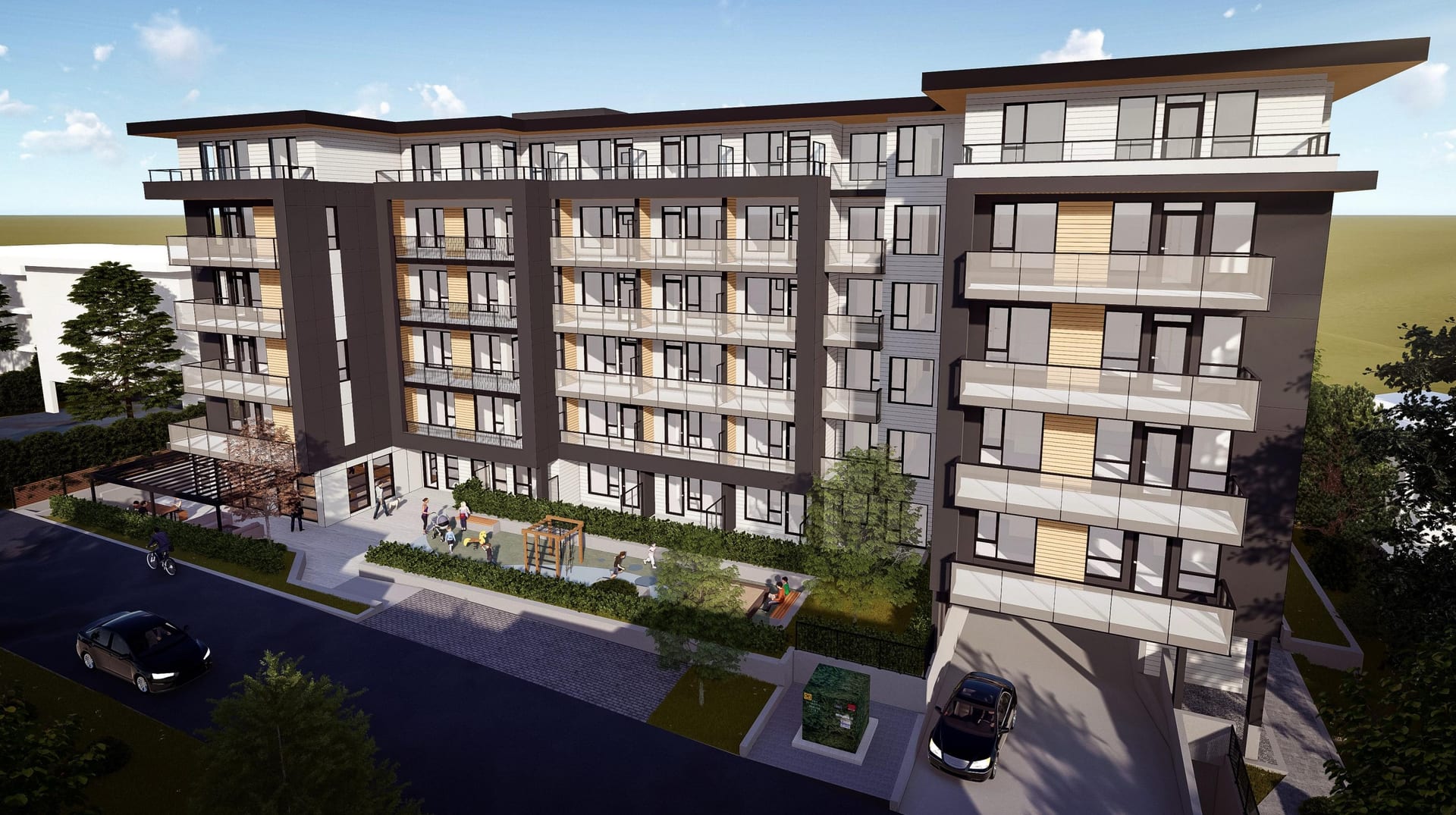

CELO district energy interface

Project Data

LocationNorth Vancouver, BC
Building TypeResidential (Part 3)
Storeys / Units / Parkade6 above grade; ≈91 units; 2 parkade levels
StructureWood frame over concrete underground
Energy TargetBC Energy Step Code 3
StageDevelopment Permit (prelim) / Building Permit (detailed)
SystemsDistrict energy, hydronic fan coils
Exterior walls2x6 wood frame w/ R-24 batt
Roof5.25" polyiso + sloped insulation
Software / WeatherIES-VE; Vancouver_BC_CWEC

Our Contribution

  • Preliminary modeling (DP) Early envelope/systems options to steer design.
  • Detailed modeling (BP) Full compliance model and documentation.
  • Hourly energy modeling ASHRAE-based modeling, calibration of loads and schedules.
  • Envelope optimization Thermal bridging, clear-field R-values, and airtightness strategy.
  • Systems integration District energy, hydronic fan coils, control strategy alignment.
  • Compliance package Step Code forms, report, and coordination support.

Key Results

TEUI (modeled)116.3 kWh/m²Modeled total energy use intensity
TEDI (modeled)25.7 kWh/m²Thermal energy demand intensity
ComplianceStep Code 3Meets BC Energy Step Code
Envelope strategyHigh-performanceThermal/air barrier coordination
Total modeled energy≈ 970,302 kWh/yrAll end-uses combined
