Commercial Street

Vancouver, BC

Mixed-Use Whole-Building LCA VBBL 2019 section 10.4
Total GWP (A–C, excl. biogenic)
0 t CO2e
Biogenic carbon (info)
-62 t CO2e
GFA
0 m²

Project Overview

A four-storey mixed-use development with a concrete podium and wood light-frame structure. Our scope was a whole-building LCA per VBBL 2019 section 10.4 for Building Permit, including biogenic carbon reporting for transparency while using GWP excluding biogenic for compliance.

The analysis quantified material impacts across modules A–C and documented envelope assemblies typical of Part 3 wood-over-podium construction. Mechanical systems were not modeled for operational energy; only embodied carbon was assessed.

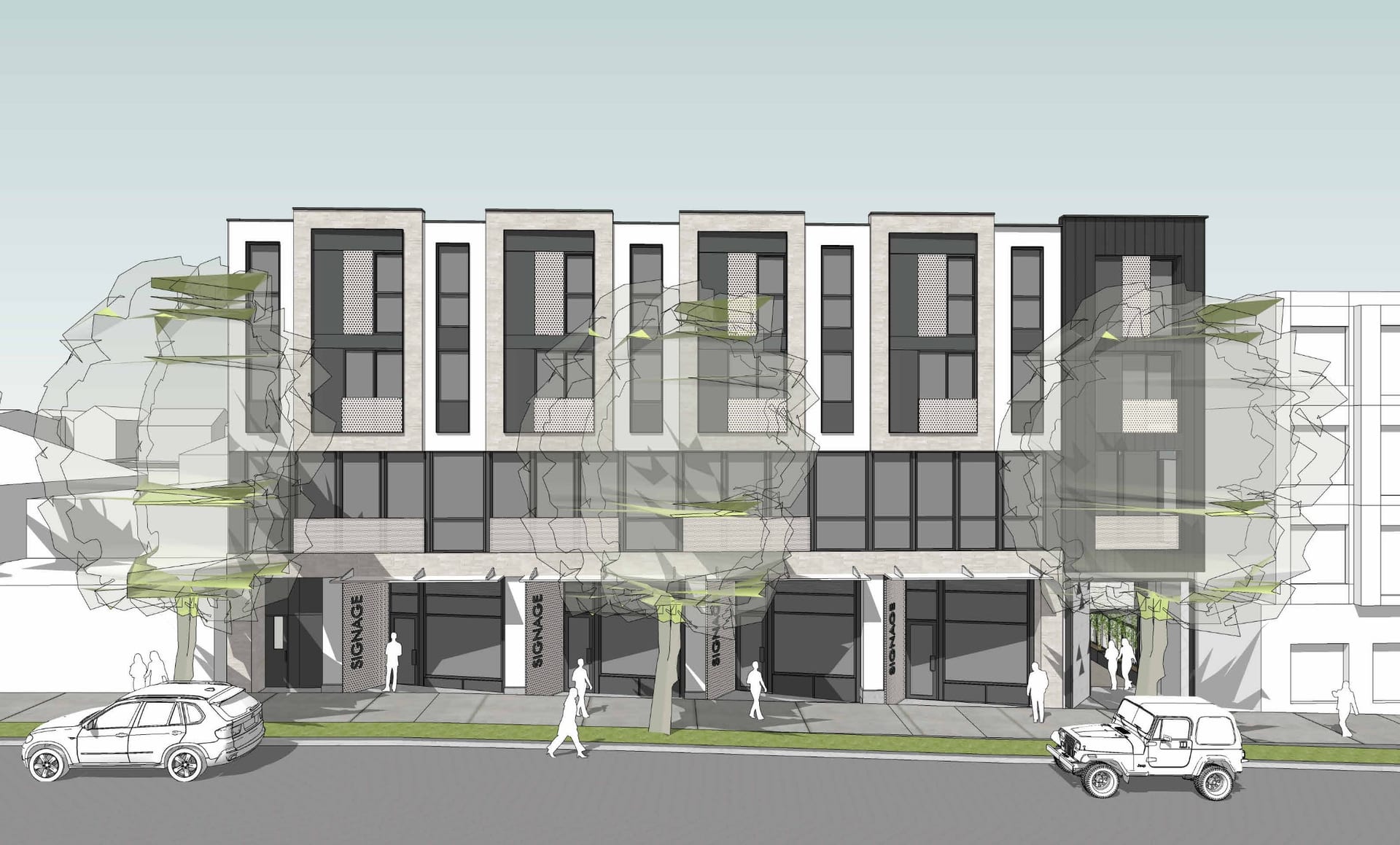

Commercial Street exterior

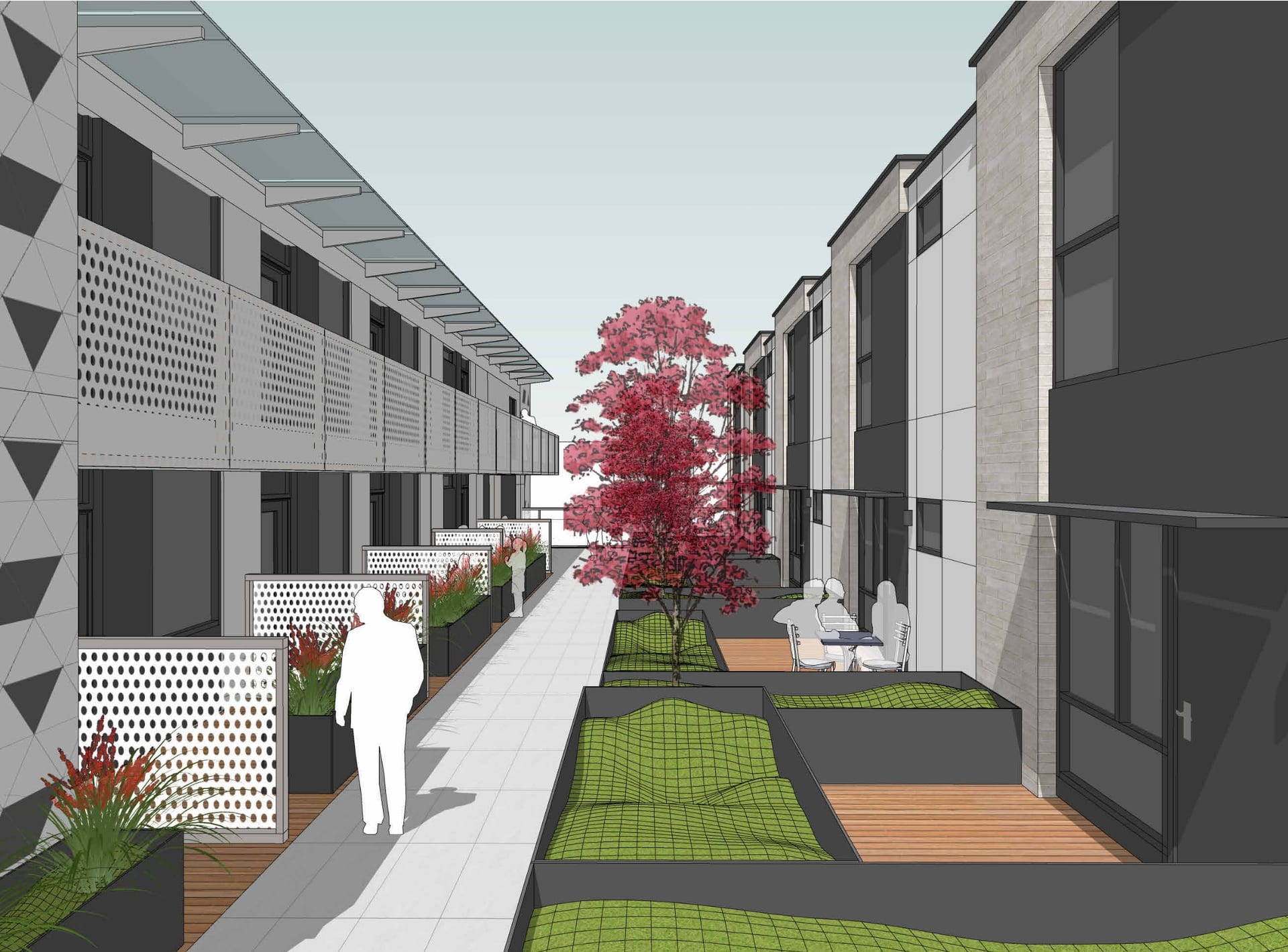

Commercial Street streetscape

Project Data

Building TypePart 3 Mixed-Use
StageBuilding Permit
Storeys4 above grade + 1 parkade
GFA (A–C scope)2,976 m²
Concrete volume1,725 m³ (25/35/45 MPa mix)
StructureConcrete podium + wood light-frame
Envelope walls2x6 R24 + 2" semi-rigid; CMU walls with R12/R8
RoofR40 polyiso over TJI joists; R30 PMR at decks
WindowsDouble-glazed, low-e, argon
ComplianceVBBL 2019 section 10.4 (ZEBP)

Our Contribution

  • Whole-building LCA Athena IE 5.5; modules A–C; CoV reporting.
  • Compliance package ECDR tables, stage totals, BoM, biogenic note.
  • Design coordination Clarified envelope assumptions and concrete volumes.

Key Results

Embodied emissions intensity (A–C)387 kg CO2e/m²1,152,649 kg / 2,976 m² (excl. biogenic)
Total GWP (A–C, excl. biogenic)1,152,649 kg CO2eCompliance value
Biogenic carbon (info)-61,661 kg CO2eReported separately per CoV guidance
A1–A3 (Product)798,000 kg CO2eMaterials and manufacturing
A4–A5 (Construction)111,000 kg CO2eTransport and site activities
B2/B4/B6 (Use — replacements)59,200 kg CO2eMaintenance and replacements
C1–C4 (End of life)123,000 kg CO2eDeconstruction and disposal
