Dewdney Trunk Road Residential

Maple Ridge, BC

Building Permit Step Code 3 (voluntary) Part 3 Residential
TEUI (modeled)
0 kWh/m²/yr
TEDI (modeled)
0 kWh/m²/yr
GHGI (modeled)
0 kg CO2e/m²/yr

Project Overview

Six-storey Group C residential along the Dewdney Trunk Road corridor in Maple Ridge. The design voluntarily targets Step Code 3 and was modeled in IES-VE 2023, pairing suite VRF heat pumps and ERVs with an optimized wood-frame envelope and high-efficiency DHW plant. Aqua-Coast Engineering led the project’s energy and envelope consulting, while the IES-VE energy model was delivered to support Step Code compliance.

On the Step Code metrics, the modeled results are TEUI – 95.4 kWh/m²/yr, TEDI – 26.4 kWh/m²/yr, and GHGI – 5.1 kg CO2e/m²/yr (corridor credits applied per BCBC/CoV guidance), demonstrating clear compliance beyond the Step 2 minimum for the jurisdiction.

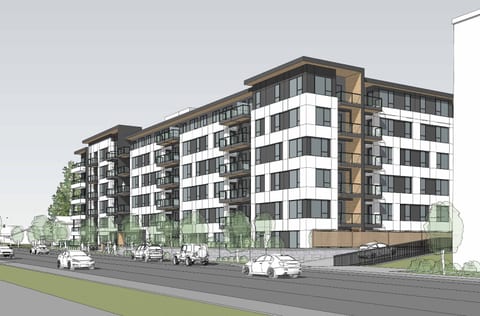

Dewdney Trunk Road rendering

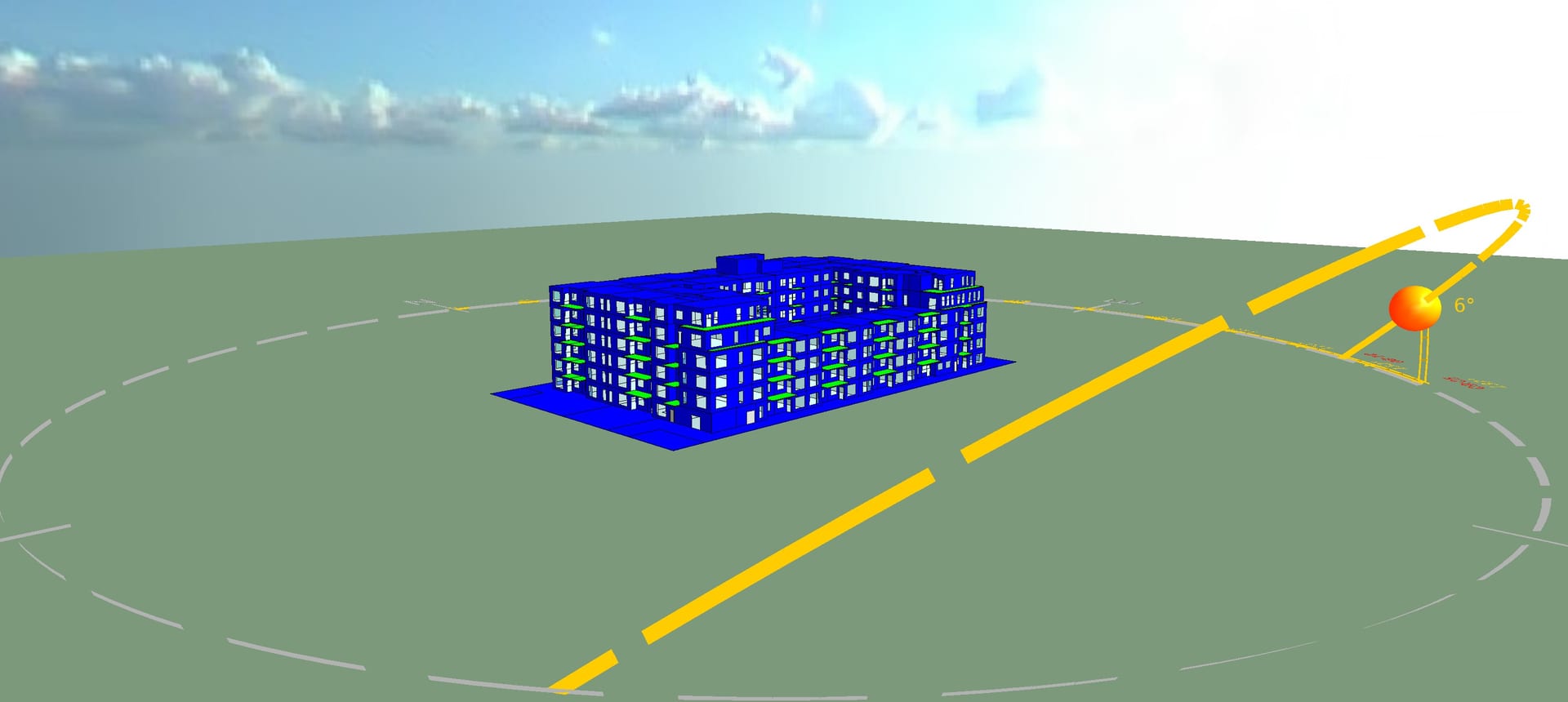

Facade detail

Project Data

LocationMaple Ridge, BC
Building TypePart 3 Residential (Group C)
StageBuilding Permit
Height / Storeys6 storeys
Modeled floor area14,509 m²
SystemsSuite VRF heat pumps; ERVs (≥80%); corridor gas RTU (90%); DHW condensing boilers (≥97%)
Software / WeatherIES-VE / Abbotsford BC CWEC
Climate (HDD18)≈ 2,860
Step CodeLevel 3 (voluntary)

Contribution

  • Whole-building energy modeling IES-VE simulation to Step Code 3 targets.
  • HVAC integration Heat pumps, ERVs, and DHW boiler coordination.
  • Permit documentation Complete Step Code reporting package.

Key Results

TEUI (modeled)95.4 kWh/m²/yrCorridor credit applied
TEDI (modeled)26.4 kWh/m²/yrCorridor credit applied
GHGI (modeled)5.1 kg CO2e/m²/yrCorridor credit applied
Total annual energy≈ 1,535,832 kWhElectric + Gas
