Heather Street Mixed-Use Development

Vancouver, BC

Rezoning Whole-Building LCA CD-1 Item 4.1
LCA intensity (A-C)
0 kg CO2e/m²
Height
0 m
Structure
Concrete (non-PT)

Project Overview

Nineteen-storey mixed-use tower with two underground parkade levels. The rezoning submission includes a whole-building LCA aligned to the City of Vancouver Green Buildings Policy for Rezoning (last amended Nov 27, 2024), under the Green and Resilient Building Measures Package (CD-1 Item 4.1).

The model (Athena IE 5.4) uses architectural take-offs, a 60-year life, and the required scope (substructure and shell). Compliance values exclude biogenic carbon per CoV. Results: intensity ≈ 357 kg CO2e/m² and total ≈ 5,453,688 kg CO2e (A-C). The project meets the current absolute pathway (400 kg) and the anticipated future 10% reduction target (360 kg) for permits after mid-2025.

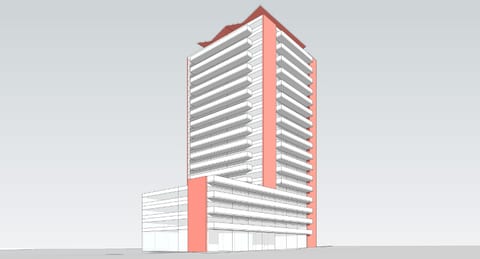

Heather Street rendering
Concrete superstructure

Project Data

LocationHeather Street, Vancouver, BC
Building TypeMixed-Use (Part 3)
StageCD-1 Rezoning (Item 4.1)
Height / Storeys59 m / 19 storeys
GFA (total)≈ 15,296 m²
Parkade2 levels (≈ 4,063 m²)
StructureConcrete (non-PT framing)
LCA scopeA1-A5, B1-B5, C1-C4; 60-year life; Module D excluded
ToolAthena Impact Estimator 5.4
ComplianceAbsolute pathway (400 kg benchmark); Future target 360 kg (F=0.9) — met

Our Contribution

  • Material take-offs coordination and LCA modeling
  • Whole-building LCA and stage reporting
  • Rezoning permit documentation (ECDR)
  • Compliance review and narrative
  • GBPR 2023 alignment

Key Results

Total GWP (A-C, excl. biogenic)≈ 5,453,688 kg CO2eIntensity: 357 kg CO2e/m²
A1-A3 (Product)≈ 4,270,000 kgMaterials and manufacturing
A4-A5 (Construction)≈ 535,000 kgTransport and installation
B2/B4/B6 (Use)≈ 221,000 kgMaintenance and replacements
C1-C4 (End of life)≈ 425,000 kgDeconstruction and disposal
