MTN Village – Phase 2

Squamish, BC

Mixed-Use Energy Modeling Envelope Optimization
TEUI
0 kWh/m²·yr
TEDI
0 kWh/m²·yr
Compliance
BC Energy Step Code

Project Overview

Six-storey mixed-use (residential over commercial) over two levels of underground parking. The energy model was developed for Building Permit compliance with BCBC Part 10 (Rev 5), BC Energy Step Code Level 3 (residential) and Level 2 (commercial), using DesignBuilder with EnergyPlus and NECB 2015 Part 8 methods.

The study quantified TEUI/TEDI and evaluated envelope U-values, glazing SHGC, window-to-wall ratio, and electrified HVAC/DHW systems (PTHPs in suites; split ASHPs for CRUs/office; ERVs/HRVs). Results informed code-aligned documentation and system sizing.

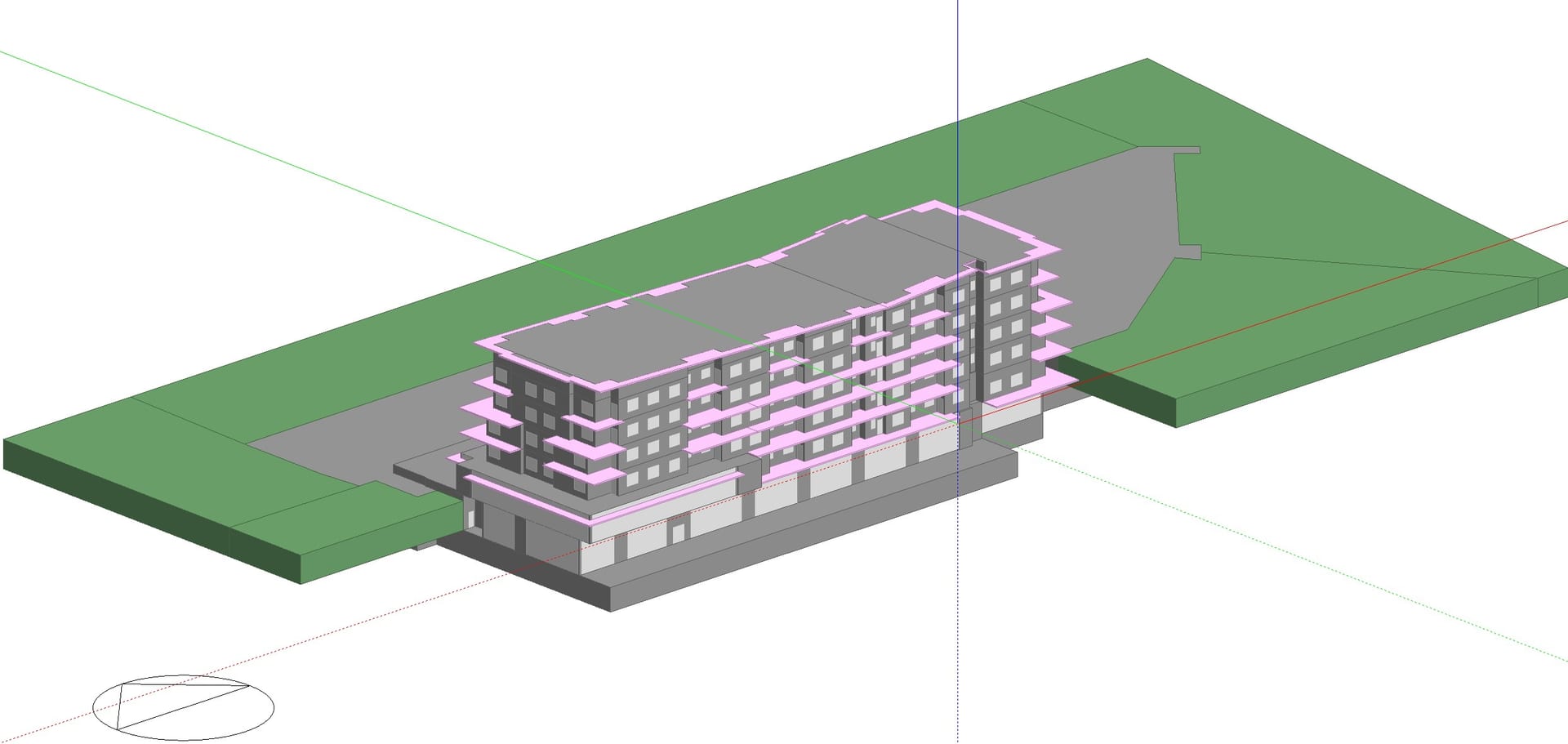

MTN Village massing

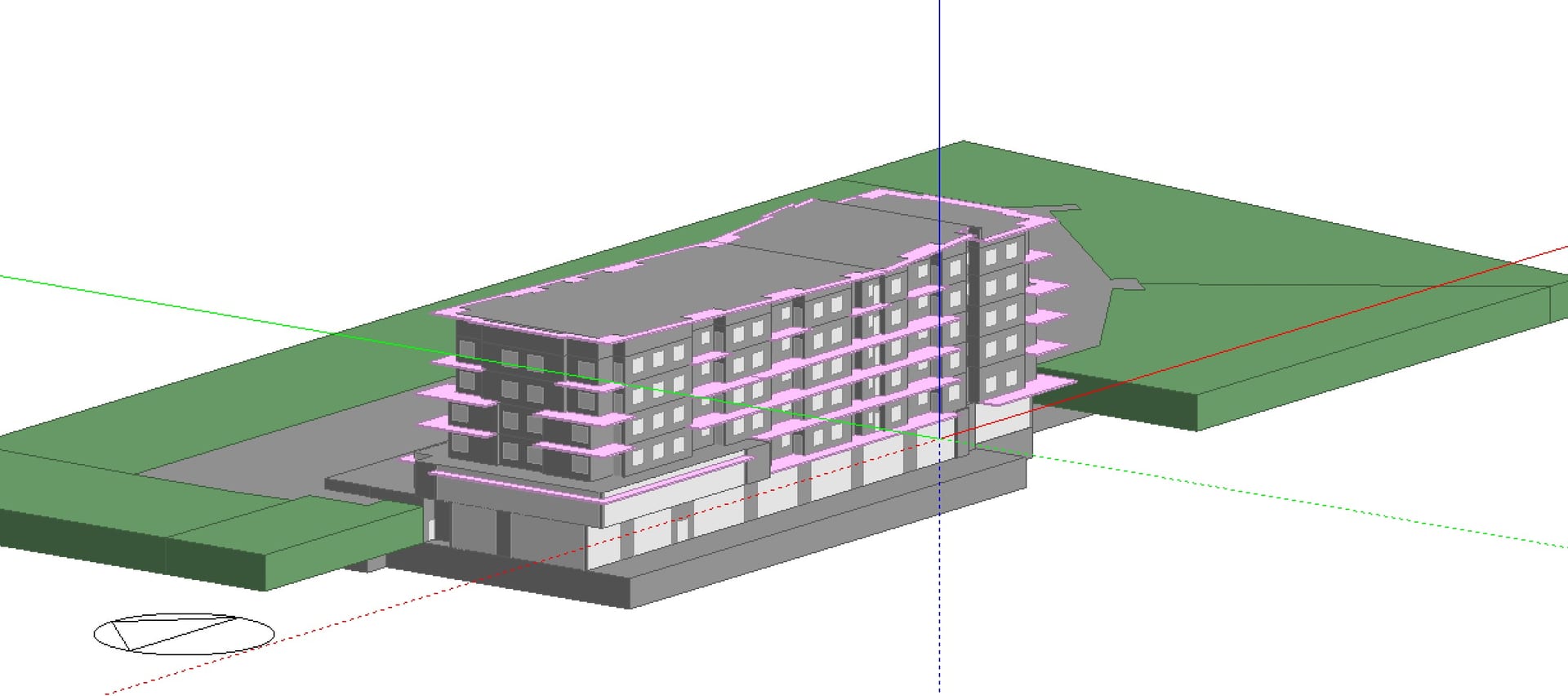

Envelope and systems study

Project Data

Building TypeMixed-Use (Part 3)
StageBuilding Permit
Location / WeatherSquamish, BC / CWEC
Modelled Floor Area8,790 m² (excl. parkade)
Compliance TargetsBC Energy Step Code Level 3 (residential), Level 2 (commercial)
ResidentialWalls U-value≤ 2×6 wood studs 16" O.C. with R24 batt within cavities, 0.527 W/m²·K
Roof U-valueWood trusses with R-60 batt within cavities, 0.098 W/m²·K
Windows / SHGCPVC U 1.5 / 0.30; Storefront U 2.0 / 0.35; WWR 35%
MechanicalPTHPs (suites), ASHP splits (CRU/office), ERV/HRV, Electric water heaters
SoftwareDesignBuilder / EnergyPlus

Our Contribution

  • Whole-building energy model DesignBuilder/EnergyPlus; code-aligned BP submission.
  • Parametric study Envelope U-values, SHGC, WWR, HVAC/DHW options.
  • Permit package inputs Metrics and documentation for submission.

Key Results

TEUI116.12 kWh/m²·yrBuilding permit metric
TEDI28.72 kWh/m²·yrArea-weighted per guideline
Annual electricity1,020,585 kWhModeled end-use total
