Eleman Engineering

West Broadway Development

Vancouver, BC

Mixed-Use Residential Whole-Building LCA VBBL ZEBP Embodied Carbon
GFA (without parkade)
0
Total GWP (A-C)
0 t CO2e
Primary Energy
0 GJ

Project Overview

West Broadway Development is a four-storey mixed-use residence designed to meet the Vancouver Building By-law ZEBP pathway. Our scope focused on whole-building Life Cycle Assessment and embodied-carbon reporting to support permit submissions and guide low-carbon material choices.

The concrete structure provides durability and seismic performance while delivering 61 residential units across four levels over a two-level underground parkade. The design combines residential and commercial uses with efficient massing and a resilient envelope, and our LCA documentation demonstrates compliance across modules A-C with clear intensity metrics.

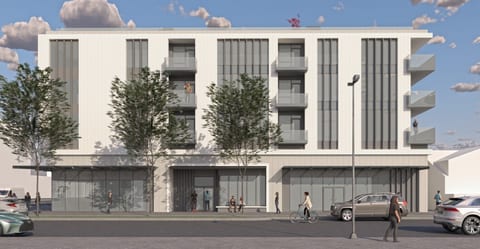

3080 W Broadway street frontage

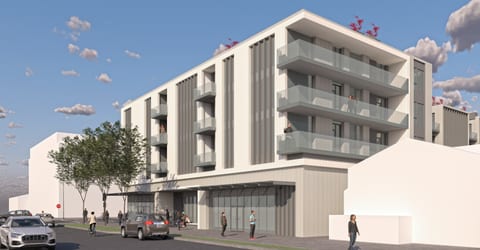

Amenity and commercial interface

Project Data

LocationWest Broadway, Vancouver, BC
Building TypePart 3 Mixed-Use Residential
Height15.5 m
GFA (without parkade)7,109 m²
Parkade GFA3,161 m²
Residential Program61 units, 75 bedrooms, 93 Parking stalls (2 underground levels)
Concrete volume6,880 m² (25/35/45 MPa mix)
StageDesign Development / Building Permit
Compliance PathVBBL 2019 section 10.4 (ZEBP)

Our Contribution

  • Whole-building LCA Modeled modules A-C with Athena; quantified GWP and indicators.
  • Embodied Carbon report Prepared City of Vancouver templates; summarized intensity metrics.
  • Permit-ready package Delivered stage tables, bill of materials, and submission appendices.

Key Results

Embodied emissions intensity (A-C)≈ 551 kg CO2e/m²3,921 t CO2e / 7,109 m²
A1-A33,118 t CO2eProduct stage
A4-A5374 t CO2eConstruction
B2/B4/B6102 t CO2eUse phase
C1-C4328 t CO2eEnd of life
